Beam stress analysis practice

The upper pictures are the exercise of exerting a force in the direction of the beam. The picture on the left is the default setting. The picture is the stress after the force is been applied.

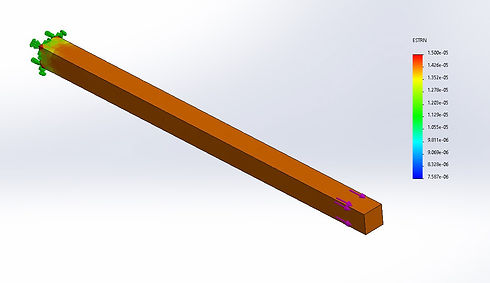

These two pictures are a continuation of the upper study. The picture on the left is the displacement figure and the picture on the right is the strain figure.

This is the study of exerting a force from the top of the beam.

The picture on the left is the displacement vs length figure, and the picture on the right is the stress vs length figure.

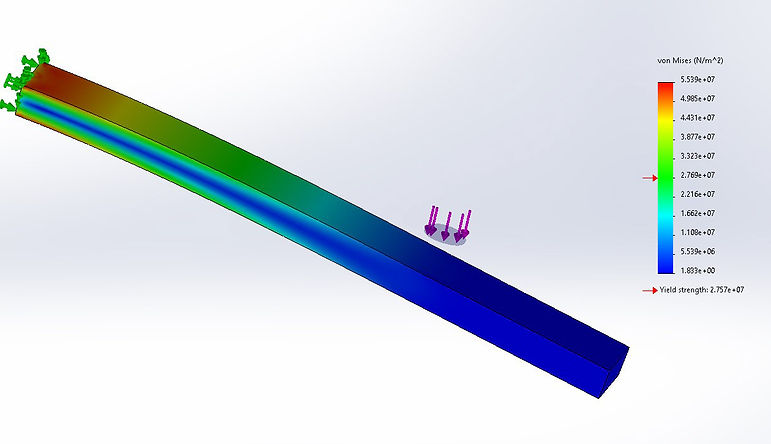

This is the study of exerting a force in a limited area on the beam. It can be achieved by using the split line function.
